FuelTech USA

PS-150 Pressure Sensor (0-150 psi)

PS-150 Pressure Sensor (0-150 psi)

Regular price $119.00 USD
Regular price Sale price $119.00 USD
Sale Sold out
Options

SKU:5005100020-BLK

  • FuelTech's 0-150psi Pressure Sensors provide accurate and reliable pressure readings in high-performance automotive applications such as racing. Engineered for precision and durability, these sensors deliver real-time data essential for optimizing engine performance and ensuring safe operation. Whether used for monitoring fuel, oil, or boost pressure, these sensors provide invaluable insights to enthusiasts and professionals alike, making them an indispensable component in any performance-driven setup.

TECHNICAL DESCRIPTION

  • Output: 0.5-4.5V
  • Supply: 5V
  • Range: 0-150 psi
  • Thread size: 1/8" NPT

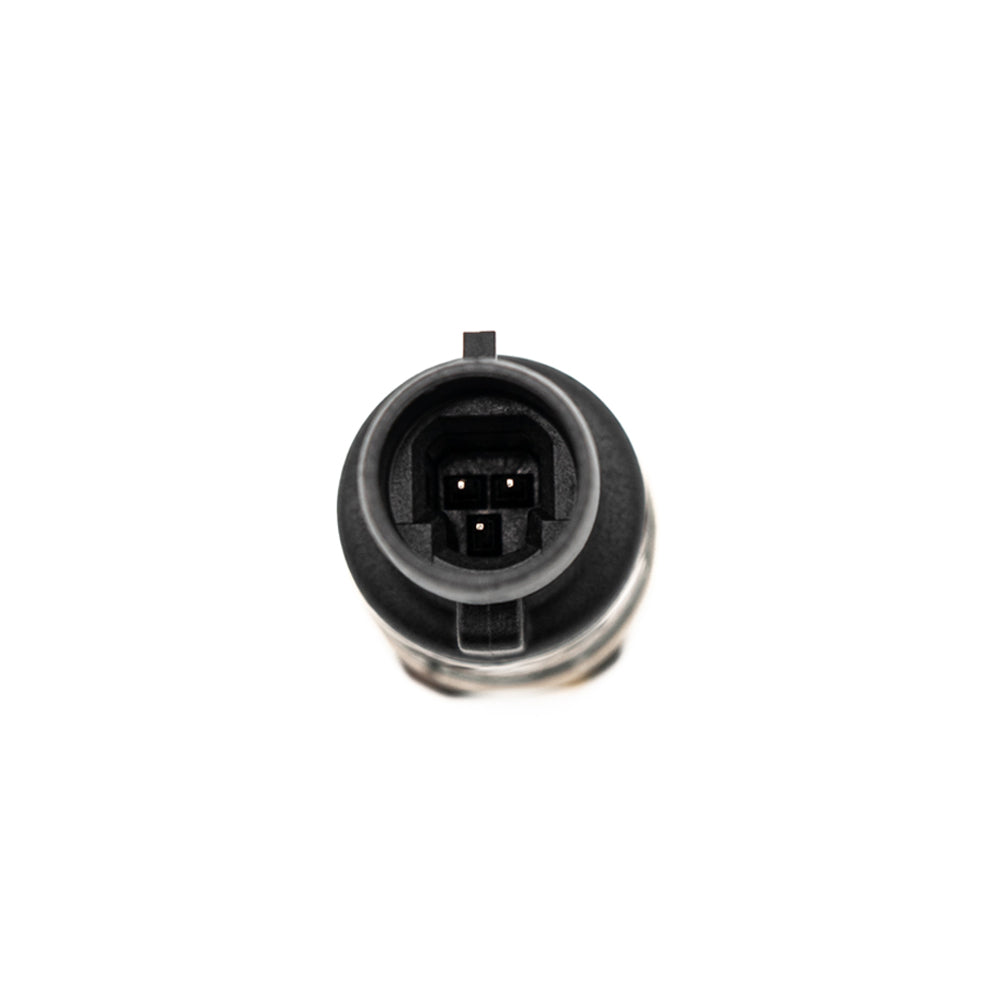

Connector Pinout:

  • A - Ground
  • B - 5V
  • C - Signal

SPECS

Performance Long Term Drift: 0.2% FS/YR (non-cumulative)

Accuracy: 0.25% FS

Thermal Error: 0.83% FS/100°F (1.5% FS/100°C)

Compensated Temp: -40°F to +257°F (-40°C to +125°C)

Operating Temp: -40°F to +257°F (-40°C to +125°C)

Zero Tolerance: 0.5% of span

Span Tolerance: 0.5% of span

Response Time: 1ms

Fatigue Life: 1M Cycles

Wetted Parts: 17-4 PH Stainless Steel

Enclosure: IP67 (IP65 for electrical code G)

Vibration: 40G peak to peak sinusoidal, (Random Vibration 20 to 1000hz @ approx 40G peak per MIL-STD-810E)

Shock: Withstands free fall to IEC 68-2-32 procedure 1

EMC (Radiated Immunity): 100V/m

Approvals: CE, conforms to European Pressure Directive, Fully RoHS compliant, UL recognized files #E219842 & E174228

Weight: 35 Grams
