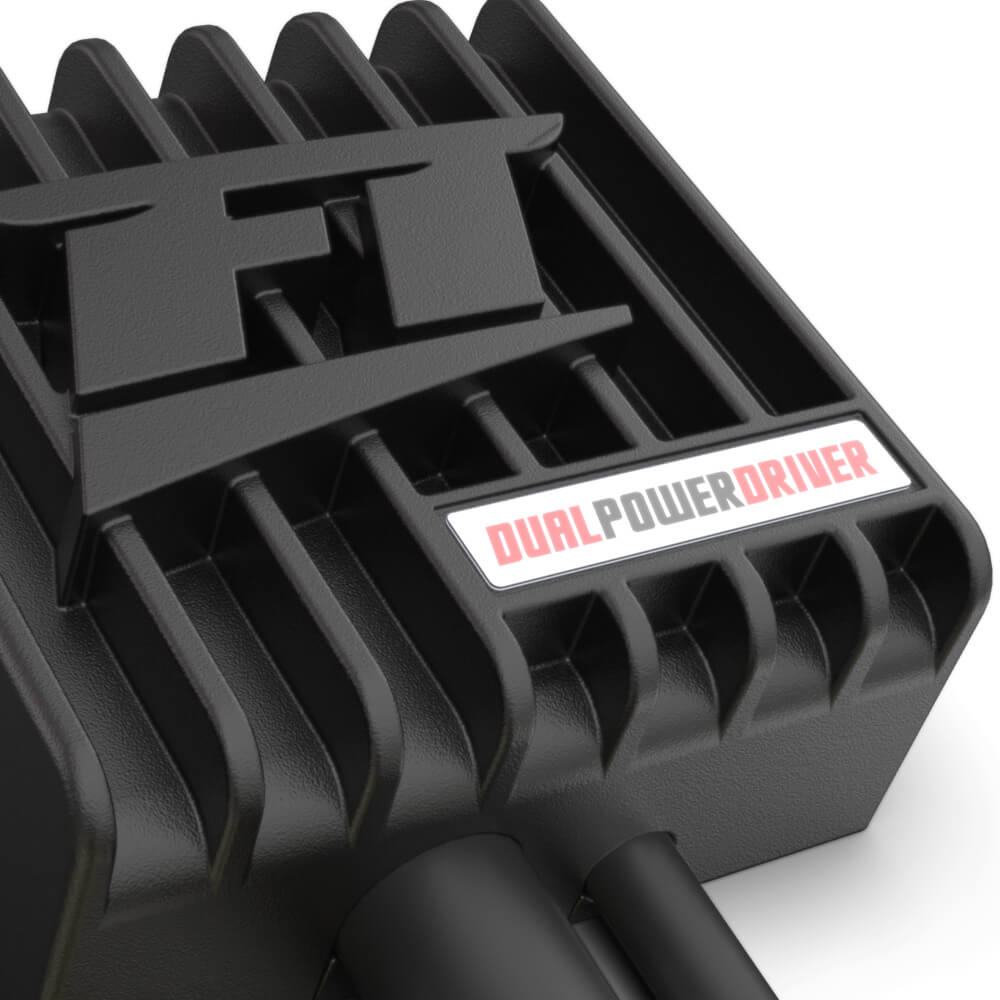

FT Dual Power Driver

• Downloads

•  FT Dual Power Driver Manual

The FT Dual Power Driver is a current amplifier that allows using the ECU outputs to activate electrical motors or devices that require a high current.

The DPD can control electronic wastegates and other actuators that demand up to 25 Amps. Call our support team to check-out about other kind of application.

With two half bridge outputs the DPD can drive a single motor in two directions, or two motors in a single direction. Able to drive high speed PWM (using PWM ECU output).

FEATURES

The FT Dual Power Driver has two half bridge outputs that allows the activation of up to 25A current. With two half bridge outputs the DPD can drive a single motor in two directions, or two motors in a single direction. Able to drive high speed PWM (using PWM ECU output). Its robust hardware brings very low delay on activation, allowing the use of controls that use high speed PWM signal.

TECHNICAL DESCRIPTION

• Power: 9V to 30V
• Max outputs current (total): 25A
• Peak current: 100A to 10ms
• Operating voltage: 9V to 30V
• Max operating frequency: 25KHz @ 30V
• Input trigger level LOW: <1.3V
• Input trigger level HIGH: >1.6V
• Switching delay: - High to low: 5.6 μs - Low to high: 6 μs

Dimensions:

DPD: 2.16 x 2.16 x 1.10 in (W x H x L)

Weight:

FT Dual Power Driver: 7.76 oz

Package DPD: 0.00 oz

Contents of packaging:

1 FT Dual Power Driver;

1 Users Manual

1 Mounting kit

Warranty: Worldwide: 1 year
