• FuelTech FT Injector line of fuel injectors are tested and calibrated to ensure linearity, repeatability, and accuracy for all cylinders.
  • Racing fuel injector with EV1 connector and silver plated terminals are engineered for high performance. 240 lb/hr
  • 240 lb/hr fuel injectors for racing feature corrosion resistant components.
  • FuelTech's racing fuel injectors are approved for use on high horsepower engines.

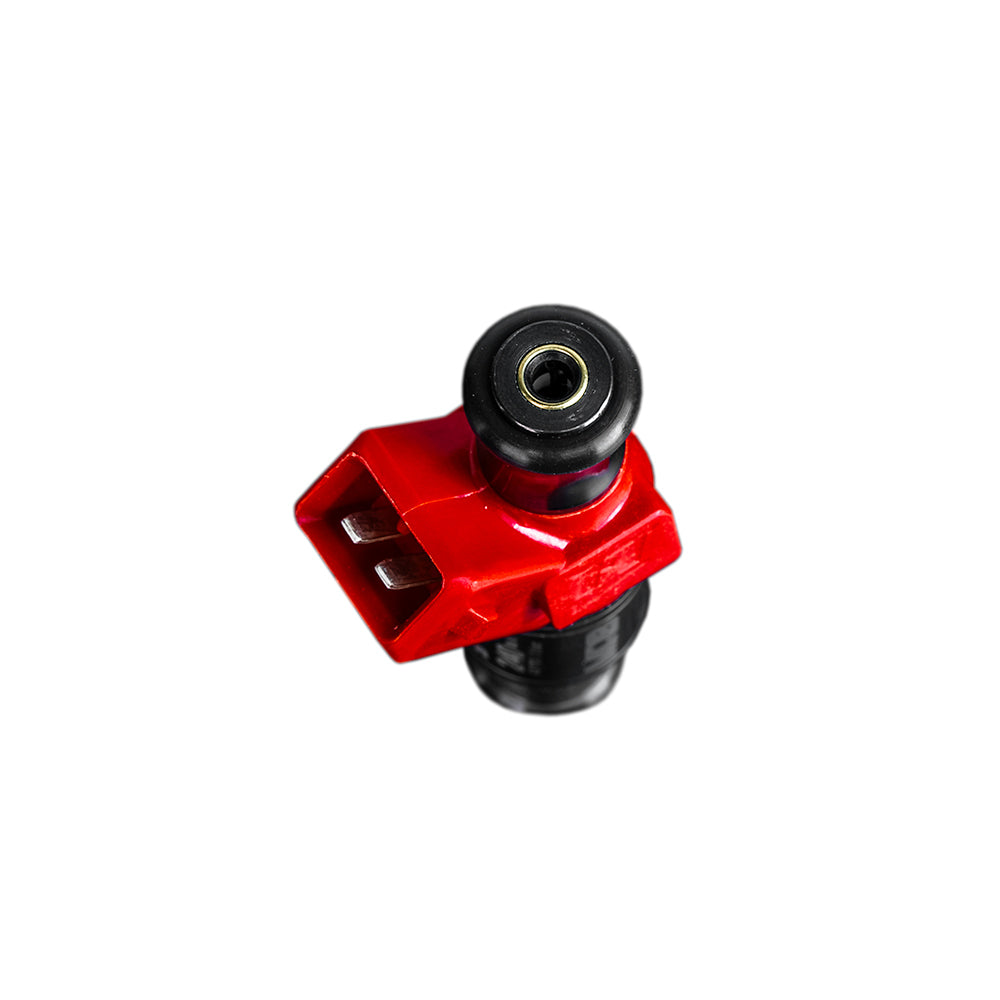

  • 240 lb/hr fuel injectors for the best performance in high impedance.
1 5

FuelTech USA

FT Injector 240 lb/h

FT Injector 240 lb/h

$219.00 USD
$219.00 USD
Sale Sold out
Sets

5010110883

  • The FT Injector 240 lb/hr (2520cc/min @ 43.5 psi) is a high impedance fuel injector from the FT Injector family, no Peak and Hold driver is required. The FT Injector is compatible with all available fuels (gasoline, ethanol, alcohol, nitromethane, nitropropane, MTBE and ETBE). Featuring EV1 connectors with silver plated terminals for superior conductivity and corrosion resistant internal components.

FEATURES

  • REAL flow, all injectors are tested, and calibrated to ensure linearity, repeatability and accuracy for all cylinders.
  • It has internal components resistant to corrosion, guaranteed by the salinization test carried out on all raw material used.
  • Compatible with any type of fuel (Gasoline, Ethanol, nitromethane, nitropropane, MTBE and ETBE)
  • Compatible with any ECU on the market
  • FuelTech warranty and support
  • Project developed prioritizing the quality and durability of the injector.



FuelTech Fuel Injector Base Flow Chart

TECHNICAL DESCRIPTION

  • High impedance
  • Coil resistance: (8.2 - 8.1) Ohms
  • Ingress protection Rating: IP67 / NEMA6



DIMENSIONS:

1 - Overall height - 74 mm (2.91”)

2 - Overall width - 18 mm (0.71”)

3 - Top O-ring diameter - 14.50 mm (0.56”)

4 - Tip - 4.1 mm (0.16”)

5 - Bottom O-ring diameter - 14.50 mm (0.56”)



PRODUCT CONTENT:

      • 1 FT Injector
      • 1 Manual

WARRANTY: 90 days
