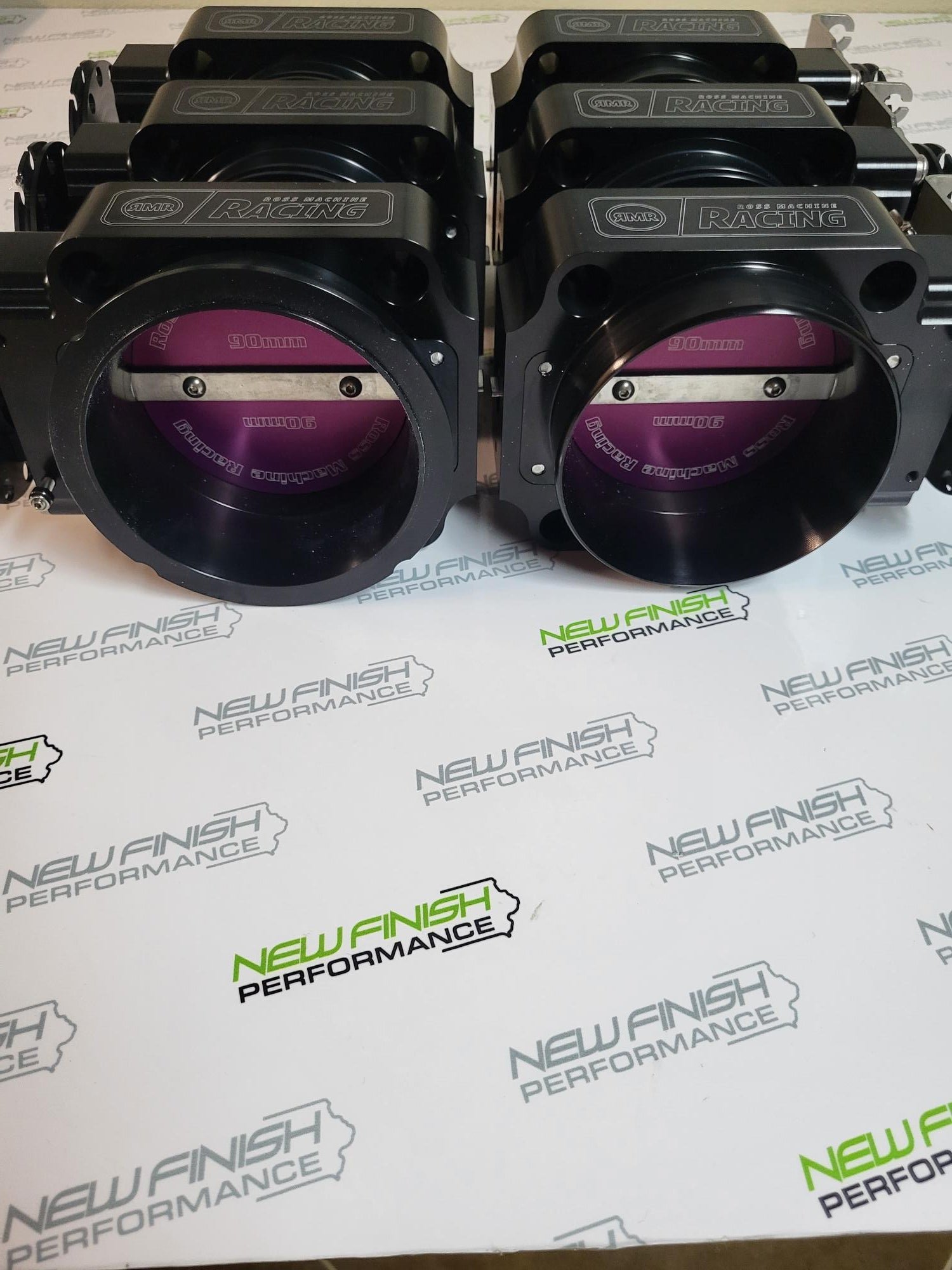

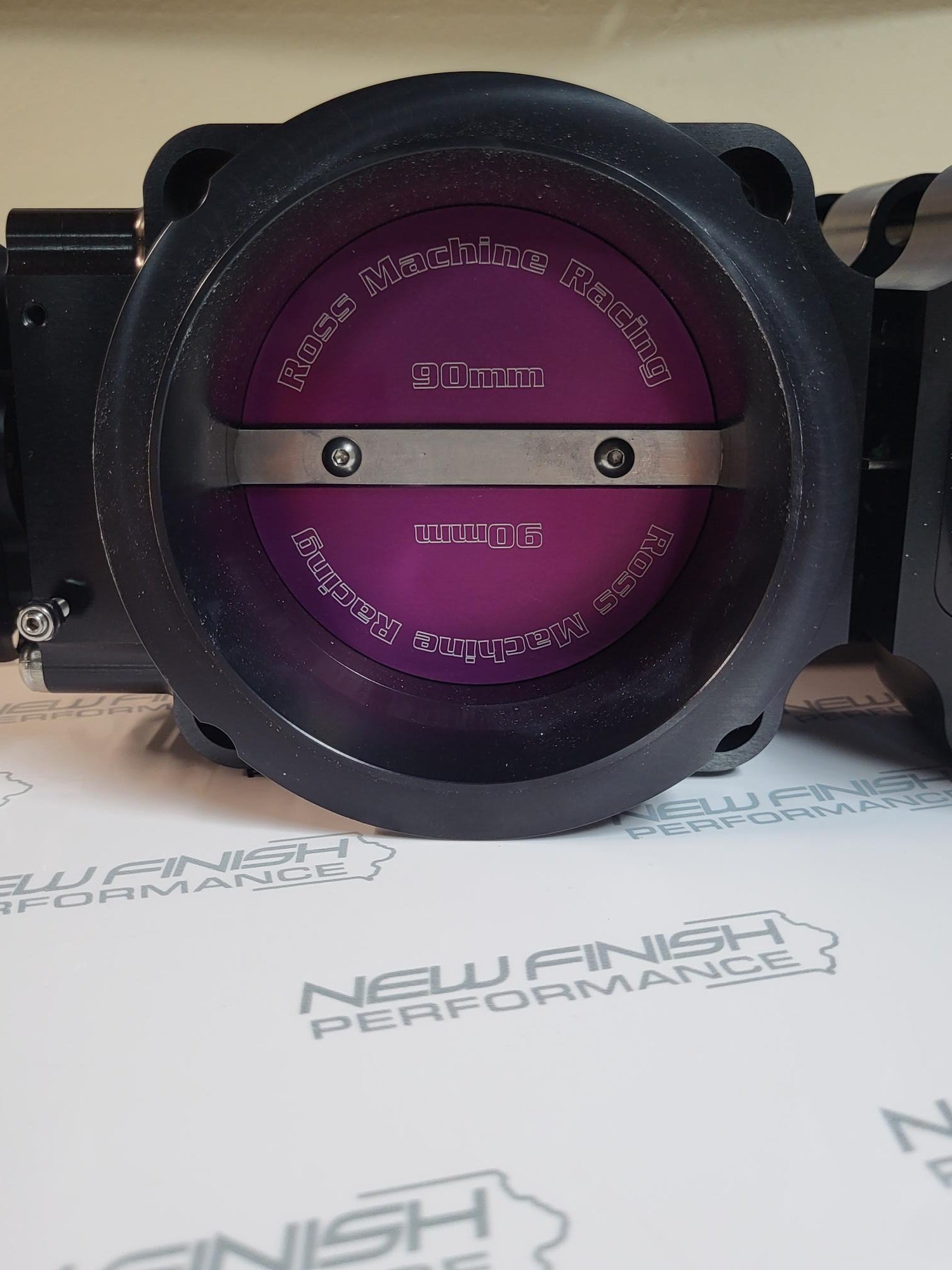

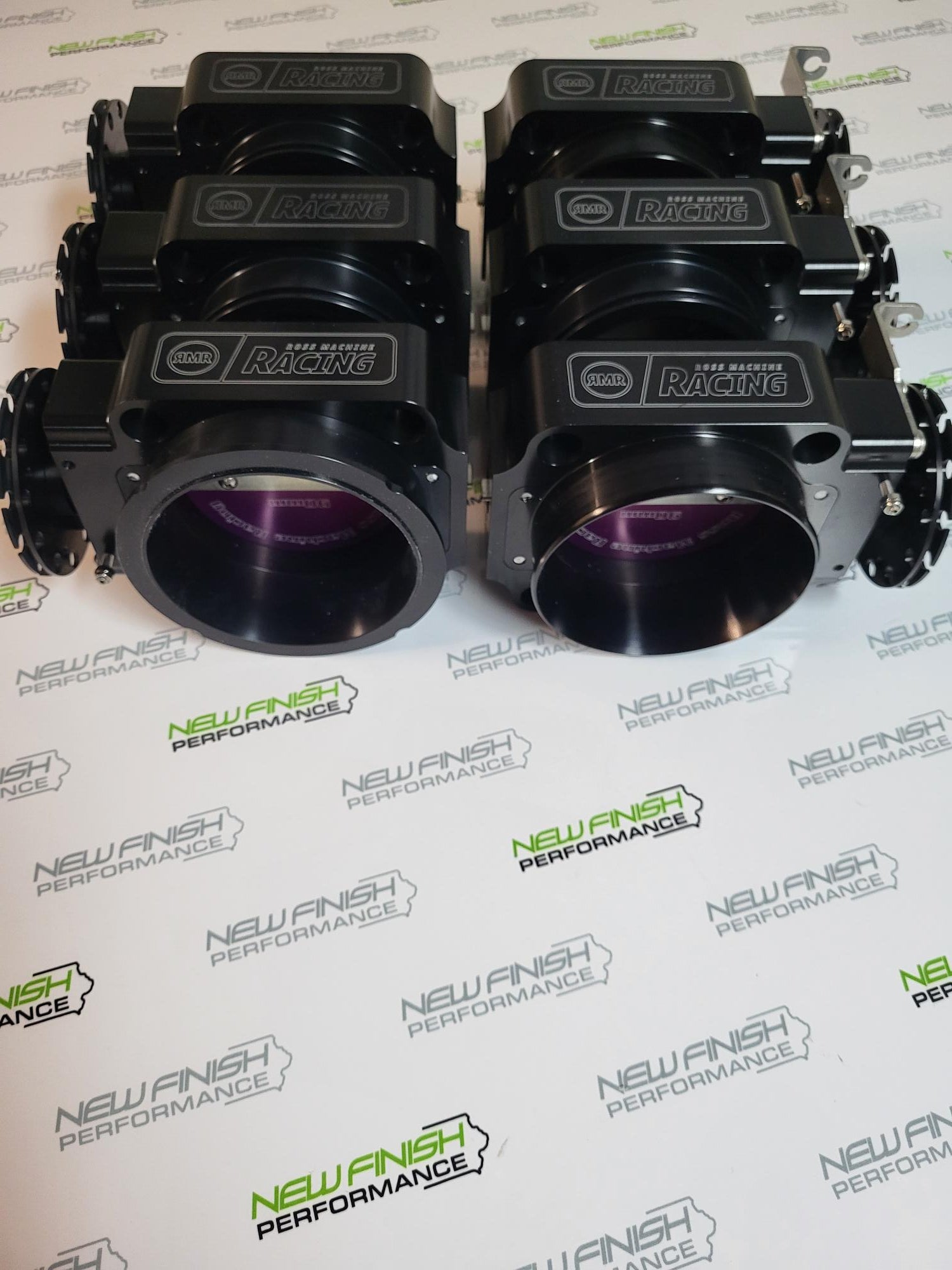

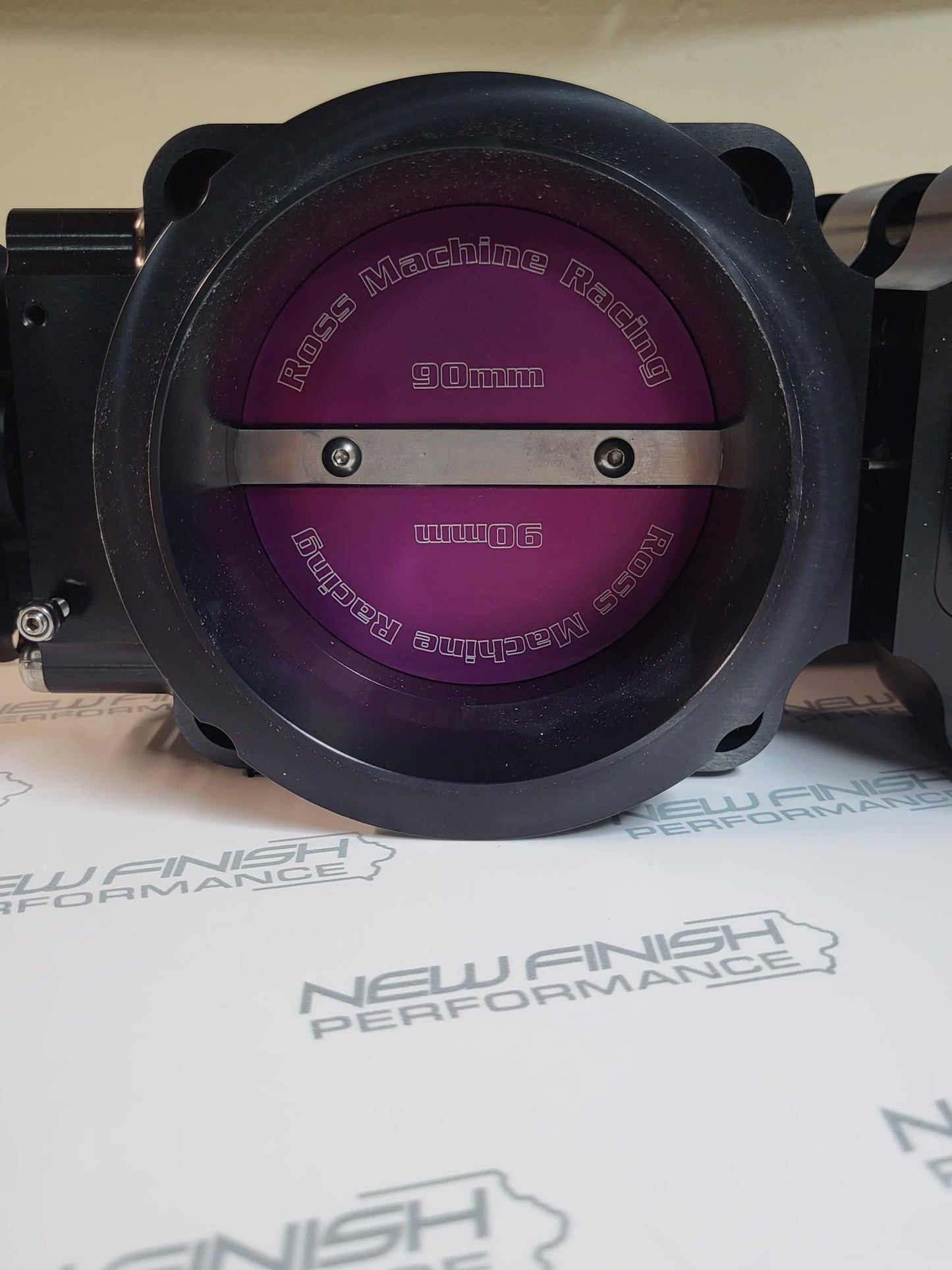

Ross Machine 90mm Throttle Body

Ross Machine Racing's 90mm bore throttle body is made to the highest standards. Manufactured using CNC machining and is made from 6061 billet aluminum combined with a stainless steel shaft.

TPS Notes:

If using - 86-93 5.0L Mustang TPS - Direct bolt on - Standard CW Mustang T/Wheel Rotation

Features:

• Uses same mounting bolt pattern as a Ford Mustang 5.0L throttle body
• M8x45mm screws and washers included
• Total thickness including the hose mount is 2-1/2 inches
• Available in standard Mustang CW or CCW rotation
• Cable mounting bracket pre-installed
• 90mm diameter blade - CNC machined from 6061 aluminum
• 4" (101mm) hose connection or other bolt-on adapters
• CNC solid billet 6061 aluminum construction
• 1/2" stainless steel shaft - split shaft design to handle high boost without breaking
• Black Anodize finish with Ross Machine Racing logo
• Includes 4" o-ring installed in front and back for prefect seal
• Needle bearing with seal to minimize leakage under high boost
• 2.7" throttle cable pulley
