SpeedFactory Racing Race Radiator Combo Kit -16an Hose, Fittings, Fill Neck and Thermostat Housing

SpeedFactory Race Radiator Combo Kit -16an Hose, Fittings, Fill Neck and Thermostat Housing

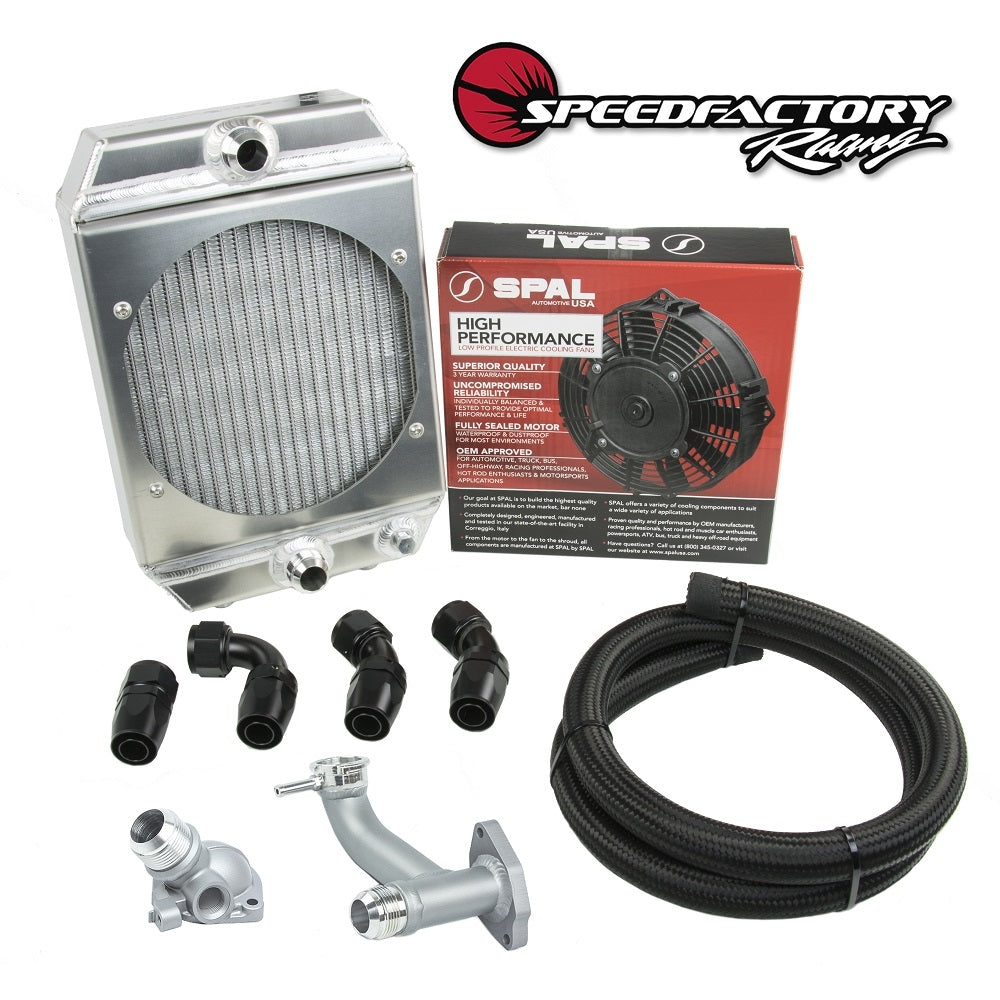

This is a combo package that includes the following components:

• SpeedFactory Race Radiator with -16an inlet/outlet
• SpeedFactory Race Shroud and SPAL 9" High Performance Fan
• SpeedFactory -16an Fill Neck for GSR or B16/ITR
• SpeedFactory -16an Thermostat Housing
• SpeedFactory -16an Fittings: 45 Degree (X2), 90 Degree (X1), Straight (X1)
• SpeedFactory -16an Black Braided Radiator Hose: 5 Ft.

This is a complete kit that will come with all the parts needed to assemble your complete cooling system. The fittings and hose will need to be assembled before installation. You will need to specify which cylinder head you are using as this kit is only for the B16/ITR head or GSR clyinder head.

We also have this combo available for D-Series and K-Series engines. D-Series applications require a SpeedFactory Racing Custom filler neck and thermostat housing. K-Series applications require the use of K-Tuned filler neck and thermostat housing adapters, which are also available at SpeedFactory Racing. Contact a sales representative today at (253) 566-4331 for pricing and ordering.

When installing the SpeedFactory Race Radiator, we recommend configuring the fittings as follows:

GS-R Cylinder Head

Thermostat housing - 45 Degree fitting

Bottom of Radiator - 45 Degree Fitting

Filler Neck - 90 Degree Fitting

Top of Radiator - Straight Fitting

B16/Type R Cylinder Head

Thermostat Housing - 45 Degree Fitting

Bottom of Radiator - 90 Degree Fitting

FIller Neck - 45 Degree Fitting

Top of Radiator- Straight Fitting
